External insulation system with Fiber Wood

External thermal insulation system with our Fiber Wood products

External insulation composite systems (ETICS) in Fiber Wood Fibertherm. Betonwood provides building solutions for insulated wall systems with stratigraphies which include our thermal and acoustic insulation with Fibertherm wood fiber and our cement bonded particle boards.

 Fiber Wood Protect for external thermal insulation system

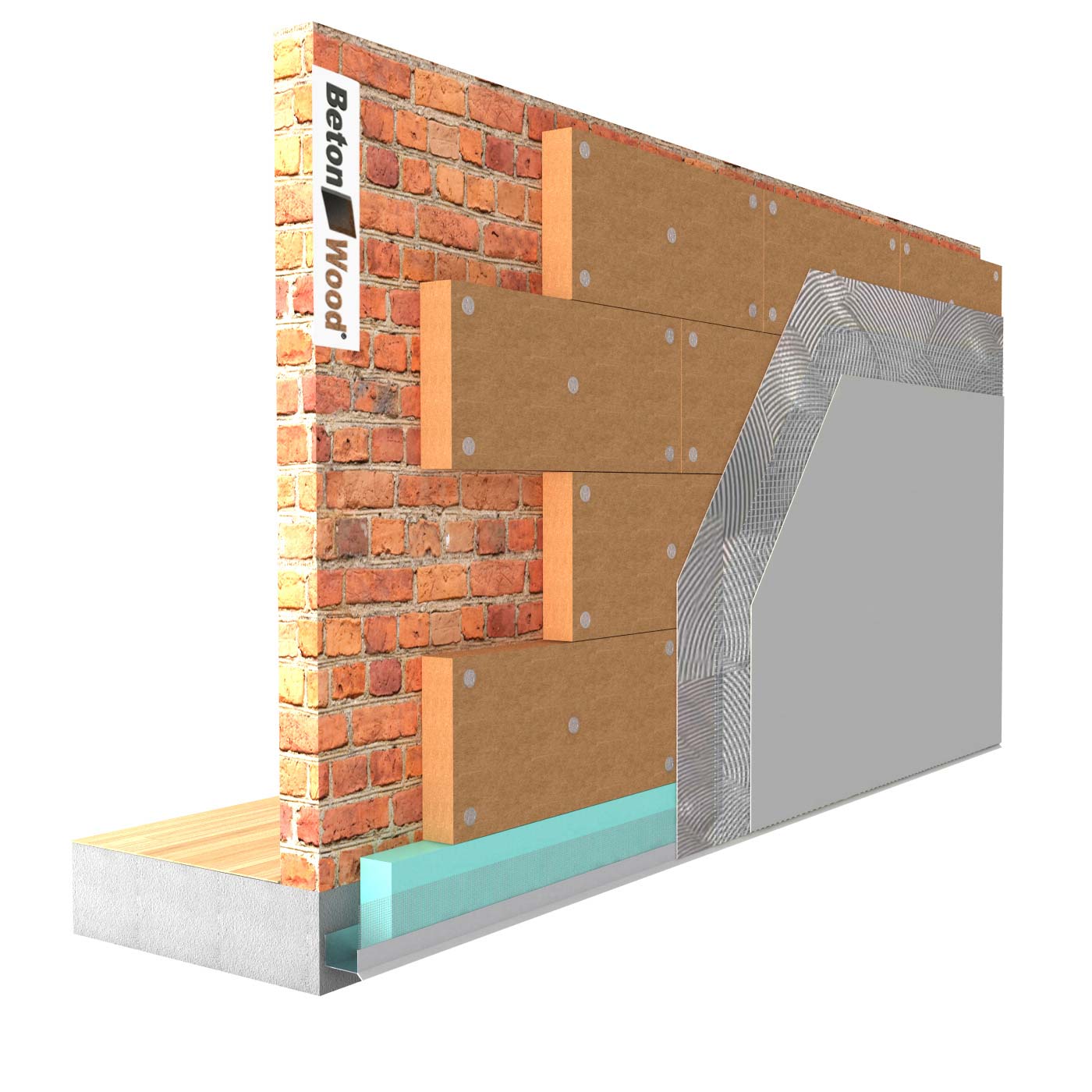

1. Thermal insulation system with fiber wood Protect

External thermal insulation composite system (ETICS) in plasterable fiber wood FiberTherm Protect realized in wet produced panels with sharp edges of tongue&groove edges available in 2 different densities 230kg/m³ and 265kg/m³, fixing plugs suitable for fiber wood panels, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification
  Download the Installation guide 230
  Download the Installation guide 265

See photo gallery 12 See photo gallery 14
Fiber Wood Protect dry for external thermal insulation system
2. Thermal insulation system with Fiber Wood Protect dry

External thermal insulation composite system (ETICS) in plasterable Fiber WoodFiberTherm Protect dry realized in dry produced panels with sharp edges of tongue&groove edges available in 3 different densities 110kg/m³, 140kg/m³ and 180kg/m³, fixing plugs suitable for fiber wood panels, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification
  Download the Installation guide 110
  Download the Installation guide 140
  Download the Installation guide 180

See photo gallery 10
External insulation system with Fiber Wood FiberTherm and cement bonded particle board on masonry
7. ETICS with fiber wood Therm and cement bonded particle board on masonry

External wall lining system in cement bonded particle boards BetonWood and fiber wood FiberTherm on masonry. The system is characterized by fiber wood type FiberTherm with sharp edges and density 160kg/m³ for thermal and acoustic insulation, and external plasterable cement bonded particle boards BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification

See photo gallery 11
External insulation system with Fiber Wood FiberTherm and cement bonded particle board on X-Lam
9. ETICS with fiber wood Therm and cement bonded particle board on X-lam

External wall lining system in cement bonded particle boards BetonWood and fiber wood FiberTherm on X-lam. The system is characterized by fiber wood type FiberTherm with sharp edges and density 160kg/m³ for thermal and acoustic insulation, and external plasterable cement bonded particle boards BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification

See photo gallery 11
External insulation system with Fiber Wood FiberTherm dry and cement bonded particle board on X-Lam
10. ETICS with fiber wood Therm dry and cement bonded particle board on X-lam

External wall lining system in cement bonded particle boards BetonWood and fiber wood FiberTherm dry on X-lam. The system is characterized by fiber wood type FiberTherm with sharp edges and density 110kg/m³ for thermal and acoustic insulation, and external plasterable cement bonded particle boards BetonWood fixed with screws on wood structure. Supply of screws for fixing the system on supports, skimming/glueing products, glass fiber net BetonNet and accessories.


  Download the Data sheet
  Download the Specification

See photo gallery 11


Fiber Wood for External thermal insulation systems

Fiber Wood Protect dry
Fiber Wood Protect dry

Fiber Wood panels available with 3 different densities 110 Kg/m³, 140 Kg/m³, 180 Kg/m³. Plasterable Fiber Wood panels for realize thermal insulating composite systems internal and external.

from 12,00€/m²

Go to page
Fiber Wood Protect
Fiber Wood Protect

Fiber Wood panels available with 2 different densities 230 Kg/m³, 265 Kg/m³. Plasterable Fiber Wood panels for realize thermal insulating composite systems internal and external.

from 8,40€/m²

Go to page
Fiber Wood Therm dry
Fiber Wood Therm Dry

Fiber Wood panels FiberTherm Dry with density 110 Kg/m³. Thermal and acoustic insulation panels ideal for attics and walls.

from 6,17€/m²

Go to page
Fiber Wood Therm
Fiber Wood Therm

Fiber Wood panels FiberTherm with density 160 Kg/m³. Rigid thermal and acoustic insulation panels for dry screeds, walls, roofs, attics.

from 5,60€/m²

Go to page
Fiber Wood Therm SD
Fiber Wood Therm SD

Fiber Wood panels FiberTherm SD with density 160 Kg/m³. Rigid thermal and acoustic insulation panels for dry screeds, walls, roofs, attics.

from 4,53€/m²

Go to page
