Dry screeds with Fiber Wood Insulation

Fiber Wood Insulation dry screeds solutions

Betonwood provides building solutions for flooring systems with stratigraphies which include our thermal and acoustic insulation with Fibertherm wood fiber and our cement bonded particle boards: traditional dry screeds, insulated floors, radiant and/or elevated floors.

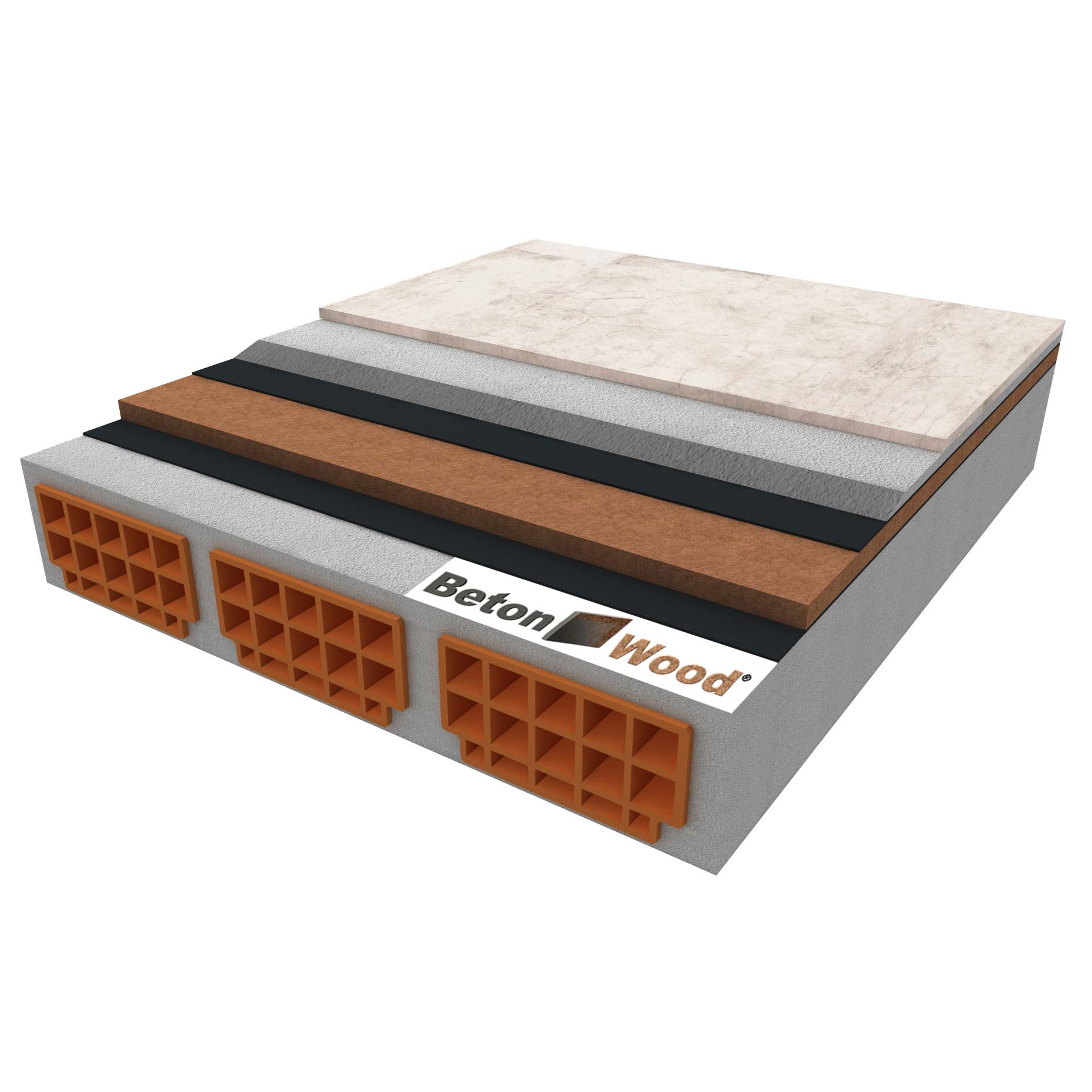

Dry screed with fiber wood Base, BetonWood and concrete casting
3. Dry screed with fiber wood Base, BetonWood and concrete casting

Screed and attic complete system with a single layer of FiberTherm Base fiber wood with high density of 250kg/m³ installed between two vapor barrier type multi UDB above and below the fiber wood panel, a concrete casting above therm and one cement bonded particle boards layer with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³. The walkable dry screed system rests on a concrete structure.


  Download the Data sheet
  Download the Specification

See photo gallery 53
Radiant floor with fiber wood and cement bonded particle board
9. Radiant floor with fiber wood and cement bonded particle board

Radiant floor complete system with thermal insulation. The screed is composed initially of a self-leveling compound on the substrate base, successively by a layer of high compression resistance fiber wood panels FiberTherm Base with high density 250kg/m³ and finally the BetonRadiant radiant system in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³.


  Download the Data sheet
  Download the Specification

See photo gallery 44
Radiant floor with fiber wood and BetonWood on X-lam
9a. Radiant floor with fiber wood and BetonWood on x-lam

Radiant floor complete system with thermal insulation on x-lam structure. The screed is composed initially of a self-leveling compound on the substrate base, successively by a layer of high compression resistance fiber wood panels FiberTherm Base with high density 250kg/m³ and finally the BetonRadiant radiant system in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³.


  Download the Data sheet
  Download the Specification

See photo gallery 44

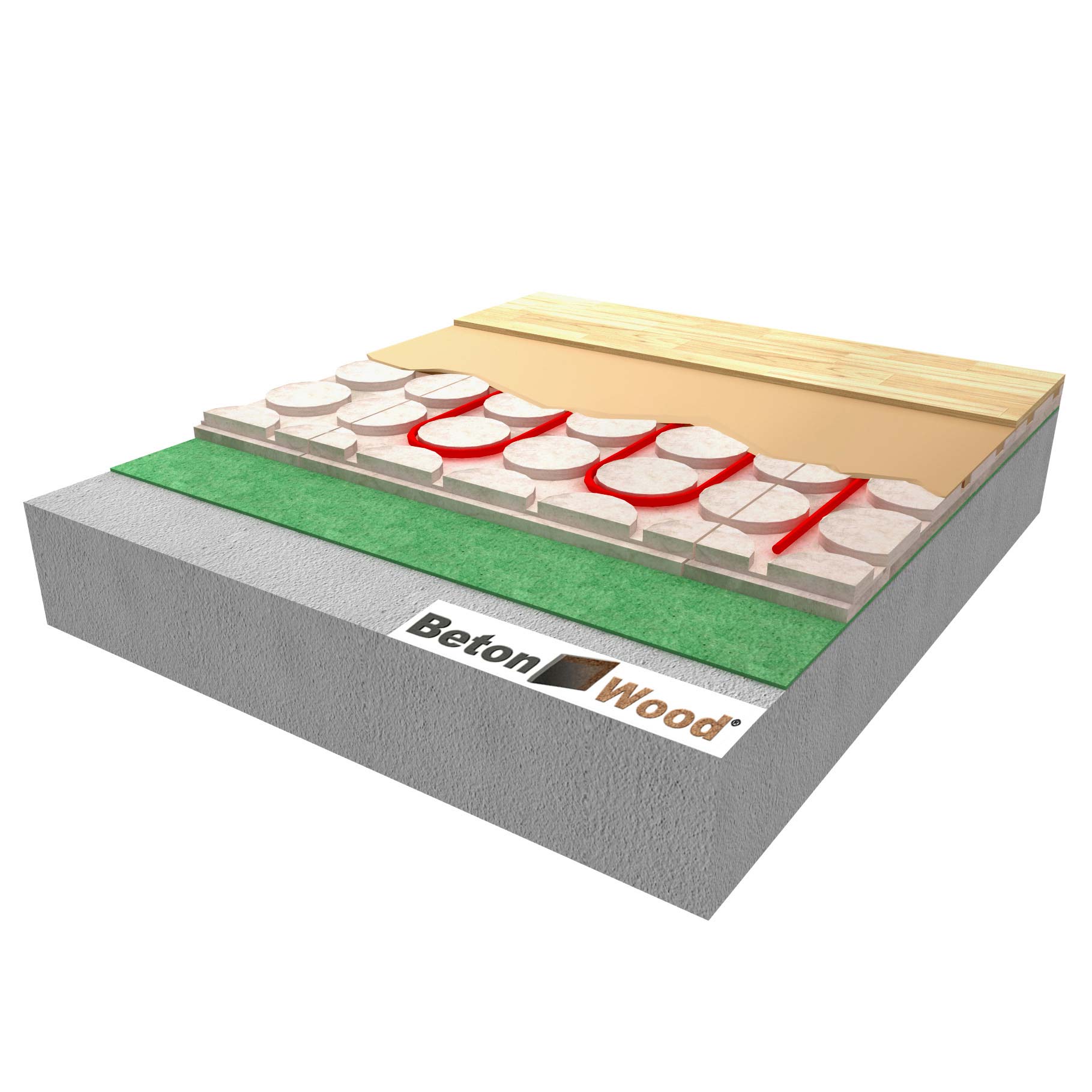

Radiant floor with fiber wood thin mat and cement bonded particle board
10. Radiant floor with fiber wood thin mat and cement bonded particle board

Radiant floor complete system with thermal insulation. Radiant floor is composed with a thin layer of high compression resistance fiber wood FiberTherm Underfloor and with high density 250kg/m³ on the base substrate, above this mat is installed the radiant system BetonRadiant in cement bonded particle boards layers with high compression resistance (approx. 2000 kPa) and a density of 1350kg/m³. For the laying of the floor surface finish it must be casting a self-leveling compound on the radiating system.


  Download the Data sheet
  Download the Specification

See photo gallery 44

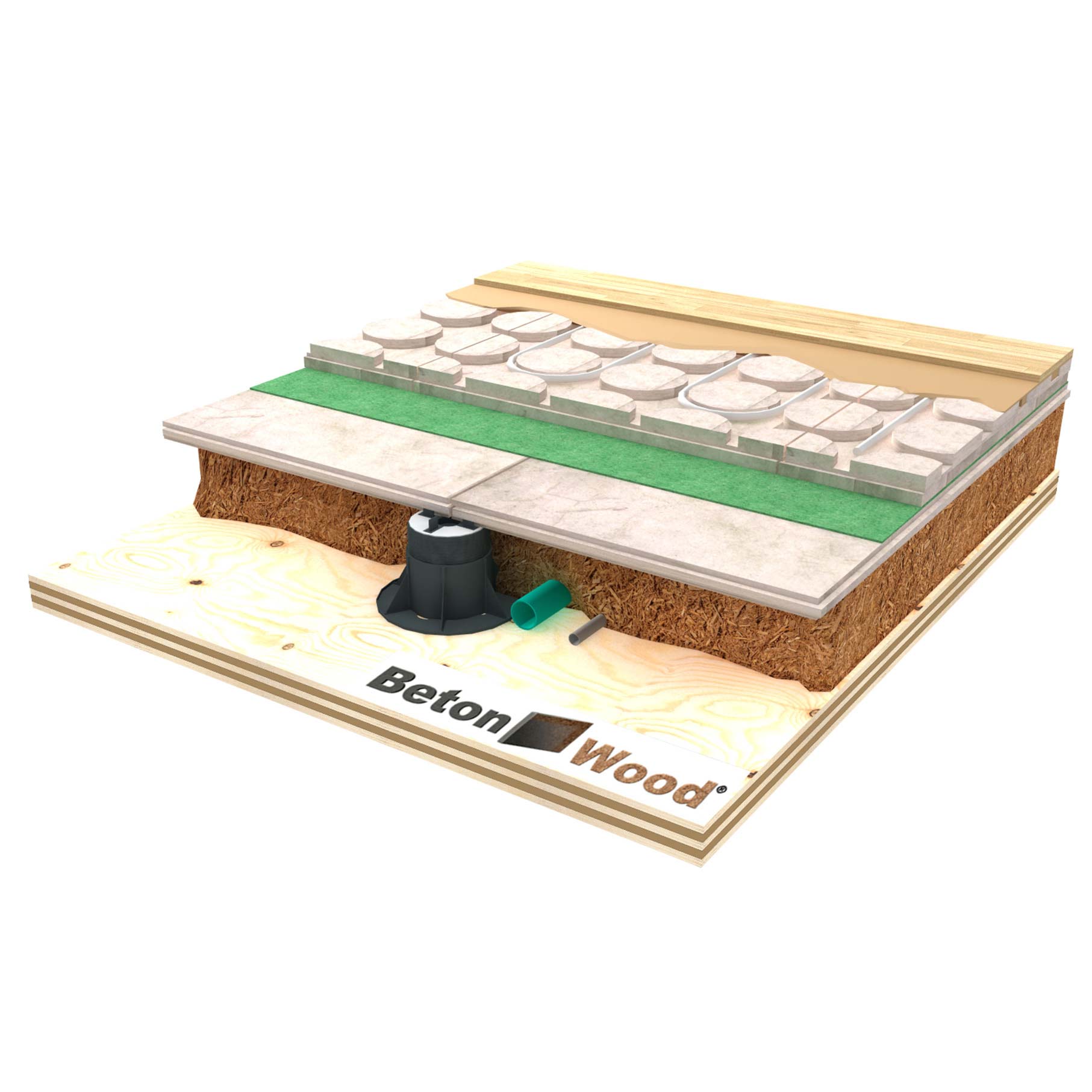

Elevated radiant floor with loose fiber wood and BetonWood
20a. Elevated radiant floor with loose fiber wood and BetonWood

Elevated radiant floor complete system with internal insulating loose fiber wood. The elevated floor is composed with adjustable hight support which sustain a layer of cement bonded particle boards with tongue&groove profile and with a density 1350kg/m³, a layer of FiberTherm Underfloor fiber wood with 250kg/m³ density, and the radiant flooring system BetonRadiant. The elevated system is filled with loose fiber wood Zell to insulate.


  Download the Data sheet
  Download the Specification

See photo gallery 48




Wood fiber panels for flooring system and dry screeds

Flexible wood fiber Flex50
Flexible wood fiber Flex 50

Flexible wood fiber panels density 50 Kg/m³. Flexible wood fiber panel for thermal and acoustic insulation of every parts of the building.

from 2,25 €/m²

Go to page
Flexible wood fiber Flex60
Flexible wood fiber Flex 60

Flexible wood fiber panels density 60 Kg/m³. Flexible wood fiber panel with high insulating power, with a very low thermal conductivity equal to 0,036 W/mk.

from 4,27 €/m²

Go to page
Wood fiber Soundstrip
Wood fiber Soundstrip

Flexible wood fiber strip density 60 Kg/m³. Flexible wood fiber strip for thermal insulation in flooring systems.

from 1,15 €/ml

Go to page
Wood fiber Roof dry
Wood fiber Roof dry

Wood fiber panels Roof dry density 140 Kg/m³. Thermal and acoustic insulation panels ideal to be installed in roofs, attics and screeds.

from 4,93 €/m²

Go to page
Wood fiber Therm
Wood fiber Therm

Wood fiber panels Therm density 160 Kg/m³. Thermal and acoustic insulation rigid panels ideal to be installed in dry screeds, walls, roofs, attics.

from 5,60 €/m²

Go to page
Wood fiber Therm SD
Wood fiber Therm SD

Wood fiber panels Therm SD density 160 Kg/m³. Thermal and acoustic insulation rigid panels ideal to be installed in dry screeds, walls, roofs, attics.

from 4,53 €/m²

Go to page
Wood fiber Floor
Wood fiber Floor

Wood fiber panels Floor density 160 Kg/m³. Thermal and acoustic insulation flooring system with tongue&groove wood fiber panels.

from 10,51 €/m²

Go to page
Wood fiber Isorel
Wood fiber Isorel

Wood fiber panels Isorel density 230 Kg/m³. Rigid wood fiber panel with reduced thicknesses for walls, screeds, roofs and attics.

from 1,63 €/m²

Go to page
Bituminous wood fiber BitumFiber
Bituminous wood fiber BitumFiber

Bituminous wood fiber panels Bitumfiber density 230 Kg/m³. Panels in bituminous wood fiber with high compressive strength and ideal for the construction of floors and floors.

from 2,78 €/m²

Go to page
Wood fiber Base
Wood fiber Base

Wood fiber panels Base density 250 Kg/m³. Thermal insulation panel with high compressive strength, ideal for floors that can be walked on.

from 5,16 €/m²

Go to page
Wood fiber Underfloor
Wood fiber Underfloor

Wood fiber panels Underfloor density 250 Kg/m³. Sub-layer mat with high compressive strength ideal for parquet or laminate floors that can be walked on.

from 0,81 €/m²

Go to page
Cellulose flakes Floc
Cellulose flakes Floc

Cellulose flakes for filling of walls, roofs, attics and floors cavietes. Cellulose flakes which fills all the empty spaces in the structural elements.

from 0,90 €/kg

Go to page
Loose wood fiber Zell
Loose wood fiber Zell

Loose wood fiber for filling of walls, roofs, attics and floors cavietes. Pure ecological wood fibers which fills all the empty spaces in the structural elements.

from 1,07 €/kg
